Name: Excavator concrete hydraulic rock hammer breaker
Brand: Guangzhou Huangpu District Henggang Machinery Parts Department
SKU: 1.5-45Ton excavator
Availability: InStock

Home Products Hydraulic Breaker Hammer

Excavator concrete hydraulic rock hammer breaker

Product Details:

Place of Origin:	China
Brand Name:	Henggang
Certification:	ISO
Model Number:	1.5-45Ton excavator

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Different packaging methods are adopted according to different modes of transport.
Delivery Time:	1~3
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

Brand Name:	FENGHUANG	Suitable Excavator(ton):	6-9ton
Place Of Origin:	GUANGZHOU	Warranty:	1 Year
Weight:	430 Kg	Core Components:	Main Body
Machinery Test Report:	Provided	Suitable For Excavator:	0.8-120ton
Working Flow:	50-90L/Min	Hose Diameter:	1/2inch
Suitable Excavator:	3-7on	Color:	Customerized
Place Of Origin Shandong, China Warranty 1 Year Weight 430 Kg Core Components Main Body Video Outgoi:	68mm/75mm/140mm/155mm	Impact Rate:	400-800bpm
Applicable Industries:	Construction/demolition Machinery
Highlight:	excavator hydraulic rock hammer , excavator rock hammer hydraulic breaker , demolition hydraulic rock hammer

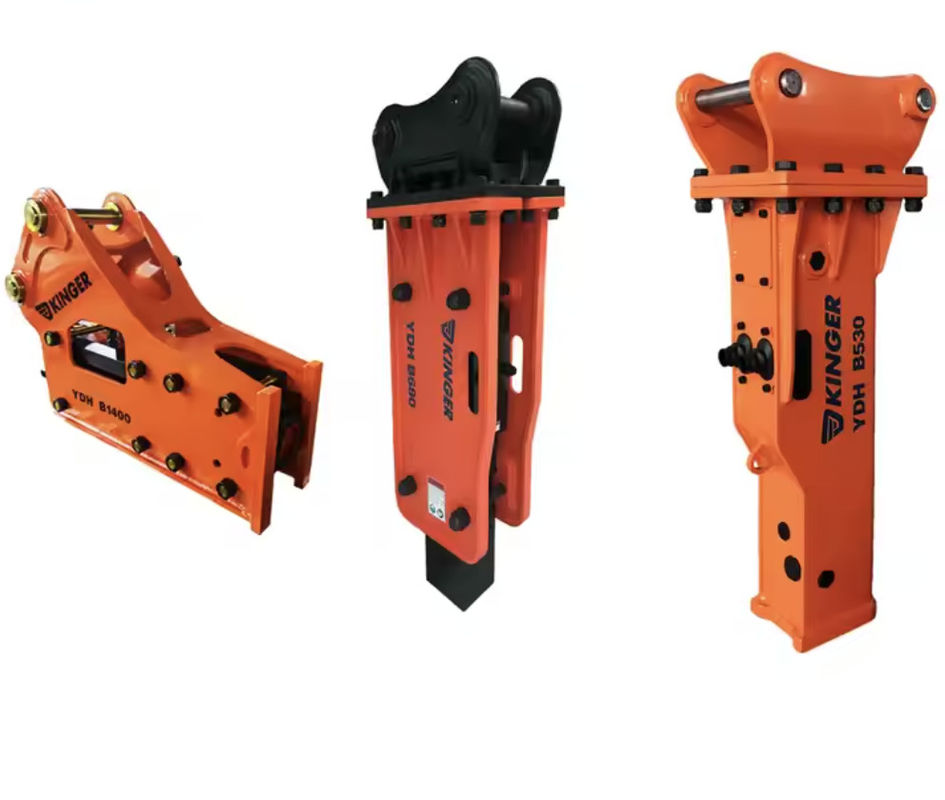

Excavator concrete hydraulic rock hammer breaker

Range for 1.5-45Ton excavator
Side type, top type, box silenced type, backhoe type, skid-steer type available.
High quality cylinder ensure the powerful impact force.

HYDRAULIC BREAKER SPECIFICATIONS
HMB Model	Operating Weight (kg)	Required Oil Flow (L/Min)	Working Pressure (Bar)	Impact Rate (Bpm)	Chisel Diameter (mm)	Hose Diameter (inch)	Carrier weight (ton)	Valve Ass'y Position (/)
PHX450	150	20-40	90-120	700-1200	45	1/2	1.2-3	Internal
PHX530	190	25-45	90-120	500-1100	53	1/2	2.5-3	Internal
PHX680	340	36-60	110-140	500-900	68	1/2	3-7	Internal
PHX750	480	50-90	120-170	400-800	75	1/2	6-9	Internal
PHX850	580	45-85	127-147	400-800	75	3/4	7-14	Internal
PHX1000	950	80-120	150-170	400-650	100	3/4	10-15	Internal
PHX1350	1650	130-170	160-185	400-650	135	1	18-25	Internal
PHX1400	2000	150-190	165-195	400-800	140	1	20-30	Internal
PHX1550	2900	150-230	170-200	400-800	155	1	27-36	Internal
PHX1650	3250	200-260	180-200	250-400	165	5/4	30-45	Internal
PHX1750	4150	210-280	180-200	250-350	175	5/4	40-50	Internal
PHX1800	4200	280-350	190-210	230-320	180	5/4	45-55	Internal
PHX1900	4230	280-350	190-210	230-320	190	5/4	50-60	Internal

Excavator concrete hydraulic rock hammer breaker 0

Main Features:
1. Cylinder&valves: prevents wear with precision finishing treatment.
2. Piston: improved running properties; manufactured with high-quality nickel&vanadium alloy steel.
3. Chisel: exceptinal performance and reliability; manufacutred with high-quality alloy steel.
4. Accummulator: reduces irregular pulse pressure on hydraulic circuit; improved striking power with supply of accumulated gas pressure.
5. Oil seal: increase hydraulic circuit design at the sied of under pressure, reduce the pressure of oil seal, improve service
life.
